When decorating a home, we must pay close attention to everything, especially the concealed projects in the home, because water and electricity have a huge impact on the use of daily life. The 118 switch socket is often used on the walls of the home, such as refrigerators, washing machines, etc. What kind of wall socket is the 118 switch socket?

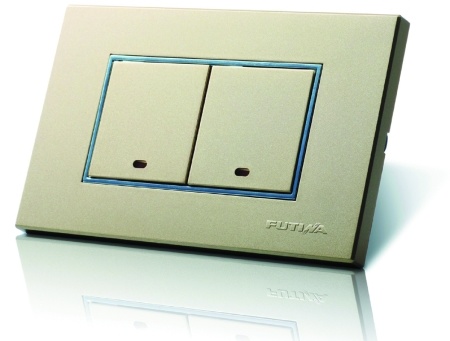

118 type wall switch socket is a kind of electrical switch with simple structure and very wide application. It is a wall switch that can be combined at will and has a very decorative effect.
The appearance of the 118 switch socket is a long strip, divided into large, medium and small models, and its functional parts (switch, socket, telephone, TV, computer) and panel can be combined at will.
The biggest feature of the 118 wall switch socket is that it can be combined with functional parts at will, which greatly facilitates the use of users. In the process of installation and use, we should also pay attention to the mutual interference phenomenon between strong and weak current functional parts, and consult the manufacturer and professional engineering and technical personnel.
Installation of 118 wall switch socket
Type 118 wall switch sockets are installed horizontally. The wiring mainly depends on the markings on the terminals on the module. For example, the sockets are generally marked with L, N and E (or symbols similar to ?), indicating live, neutral, and ground wires, respectively ; The switch is generally marked with L, L1, and L2, which respectively represent the common terminal, the first contact and the second contact (the dual-control switch has the second contact).
Wiring method 1: The switch is used as the power switch of the socket
That is, when the switch is "on", the socket is powered on, and when the switch is "off", the socket is powered off. The live wire of the power supply is connected to the L of the switch, the L1 of the switch is connected to the L of all the socket modules, the neutral wire is connected to the N of all the socket modules, and the ground wire is connected to the E of all the socket modules.
Wiring method 2: The switch is used as a light switch
That is, when the switch is "on", the light is on, when the switch is "off", the light is off, and the socket is always energized. The live wire of the power supply is connected to L of all sockets, the L on the socket near the switch is connected to L1 of the switch, the live wire is connected to L1 of the switch, the L of the switch is connected to the positive electrode of the light, the neutral wire is connected to the negative electrode of the light, and the neutral wire is connected to all socket modules. N, the ground wire is connected to E of all socket modules.
Top ten brands of 118 wall switch socketsIn the "Selection of Top Ten Leading Brands of Switches and Sockets in the Chinese Market" sponsored by China's Home Furnishing Professional Committee, Home Furnishing Network, and "Home Furnishing" magazine, many switch socket brands have competed fiercely. This selection is mainly to clarify the brands and leading brands of the subdivision types of switch sockets in my country's internal market so far, so as to provide consumers with better recommended quality switch socket brands.
After careful selection by consumers, the top ten brands such as Foton, Feidiao, Panasonic, TCL, Jiadi, Simon, Schneider, Qisheng, Chint, Simon, Bull, etc. have won, and they have become the switch sockets in the Chinese market. Top ten leading brands.
